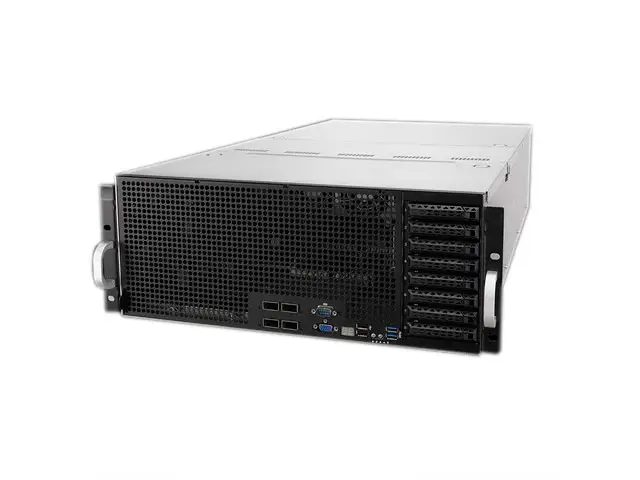

Сервер ASUS 4U ESC8000 G4
Графический двухсокетный сервер ASUS ESC8000 G4 высотой 4U на базе Intel Xeon Scalable 1 и 2 поколения, с высокой вычислительной плотностью, с поддержкой 8 видеокарт, память DDR4 2933/2666/2400 до 3072GB RDIMM, 8 слотов для дисков 2.5" HDD с горячей заменой, 1 x 2 порта Intel I350-AM2 Gigabit LAN контроллер + 1 x Mgmt LAN
Технические характеристики сервера ASUS 4U ESC8000 G4
| Процессор / Системная шина |
2 x Socket P (LGA 3647) 1st and 2nd Gen Xeon® Scalable Processor Family Processor |
| Чипсeт | Intel® Lewisburg PCH C621 |
| Оперативная память |
Total Slots : 24 (6-channel per CPU, 12 DIMM per CPU) Capacity : Maximum up to 3072GB RDIMM Memory Type : DDR4 2933/2666/2400 /2133 RDIMM DDR4 2933/2666/2400 /2133 LRDIMM DDR4 2933/2666/2400 /2133 LR-DIMM 3DS DDR4 Intel® Optane™ DC Persistent Memory Memory Size : 64GB, 32GB, 16GB RDIMM 128GB, 64GB, 32GB LRDIMM 128GB, 64GB LR-DIMM 3DS * Refer to support page for more information |
| Слоты расширения |
Full-length/Full-height: 8 x PCI-E x16 (Gen3 x16 link), FH, FL * Single root topology : 8 from CPU1 Dual root topology : 4 from CPU1, 4 from CPU2 Half-length/Low-profile: Rear: Dual root topology: 2 x PCI-E x16 (Gen3 x 16 link),LP,HL (1 from CPU1,1 from CPU2) or Single root topology: 1 X PCI-E x16 (Gen3 x16 link),LP,HL (from CPU1) Front: 1 x PCI-E x8 (Gen3 x8 link),LP,HL (from CPU2) |
| Хранилище данных |
SATA Controller : Intel® C621 8 x SATA3 6Gb/s ports + 2 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link 22110/2280/2260) or 6 x SATA3 6Gb/s ports + 2 x NVMe drives + 2 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link 22110/2280/2260) Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) Intel®VROC (For Linux/Windows) (Support Software RAID 0/1 ) SAS Controller : ASUS PIKE II 3008 8-port SAS HBA card ASUS PIKE II 3108 8-port SAS HW RAID card 12G SAS Support |
| Корпус для жесткого диска | 8 x Hot-swap 2.5" HDD Bays |
| Сеть | 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN |
| Графика | Aspeed AST2500 with 64MB |
| Разъемы на передней панели |
2 x USB 3.0 ports 2 x USB 2.0 ports 1 x VGA port 1 x COM port |
| Rear I/O Ports |
2 x RJ-45 GbE LAN ports 1 x RJ-45 Mgmt LAN port |
| Switch/LED |
Front Switch/LED: 1 x Q-Code/Port 80 LED 1 x Power switch/LED 1 x Location switch/LED 1 x HDD Access LED 1 x Message LED Front Switch/LED: 1 x Q-Code/Port 80 LED 1 x Power switch/LED 1 x Location switch/LED 1 x HDD Access LED 1 x Message LED 2 x LAN LED |
| Администрирован-е |
ACC On-Board ASMB9-iKVM for KVM-over-IP |
| Regulatory Compliance | BSMI, CE, FCC(Class A) |
| Размеры |
798mm x 439mm x 175.6mm (4U) 31.42" x 17.22" x 6.92" |
| Форм-фактор | 4U |
| Электропитание |
2+1 Redundant 1600W 80PLUS Platinum Power Supply; 100-127 / 200-240Vac, 12.9 / 9.5A（for each inlet）, 47-63Hz, Class I 2+1 Redundant 2200W 80PLUS Platinum Power Supply Rating: 100-127/200-240 Vac, 12.9/9.5 A (for each inlet), 47-63 Hz, Class I *2200W Power supply is only available for selected countries. |
| Экология |
Operation temperature: 10 ~ 35 / Non operation temperature: -40 ~ 70 Non operation humidity: 20% ~ 90% ( Non condensing) |
